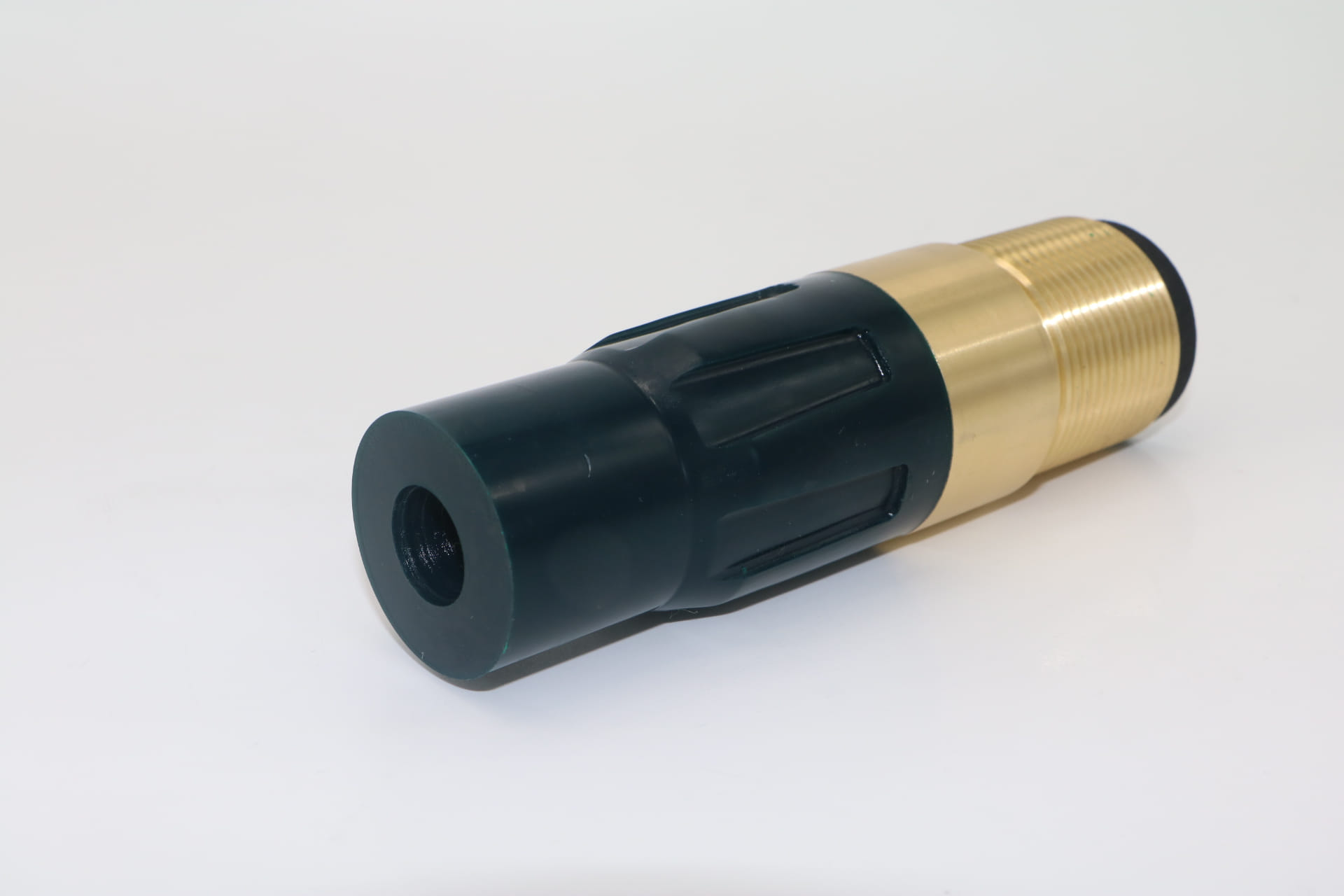

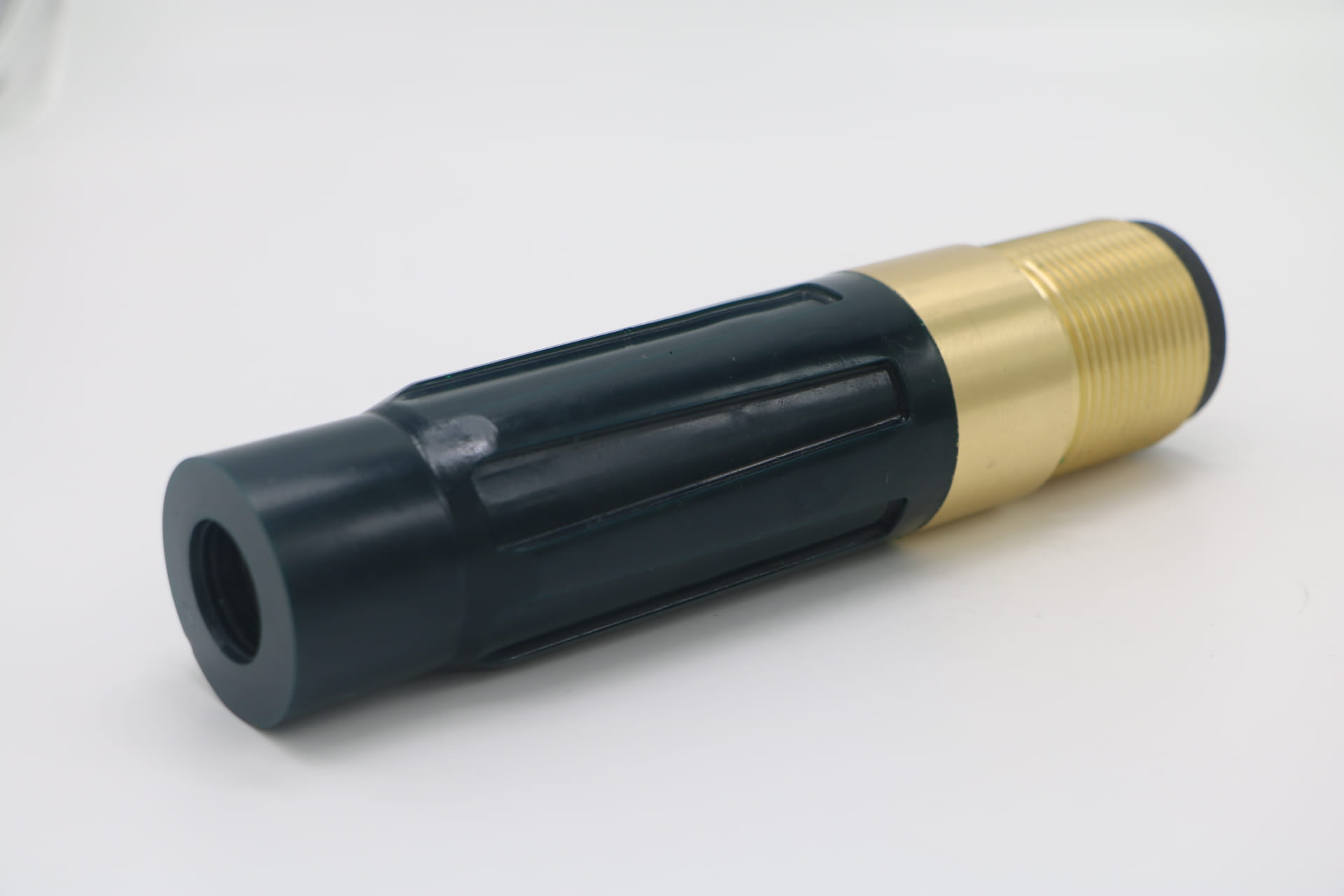

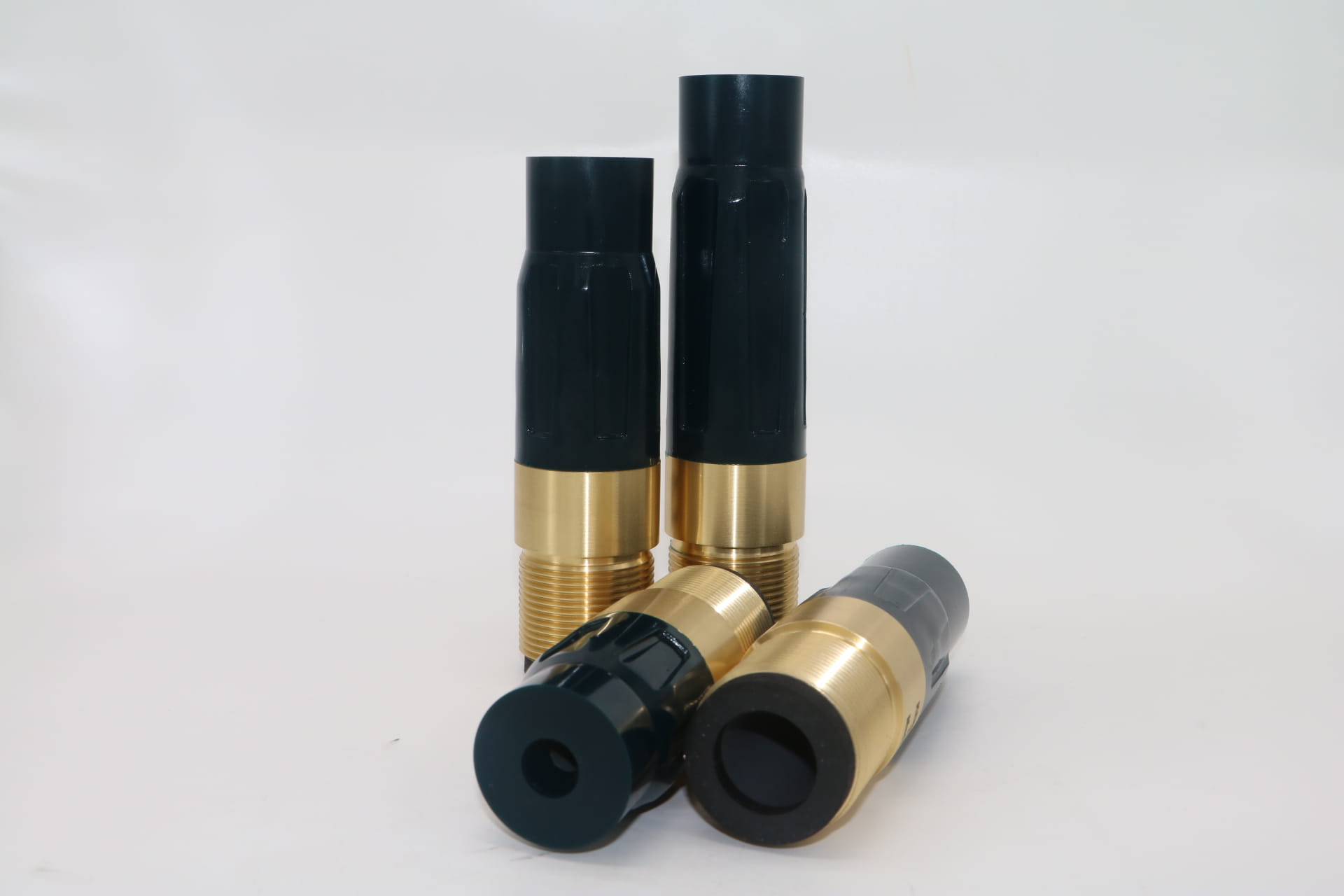

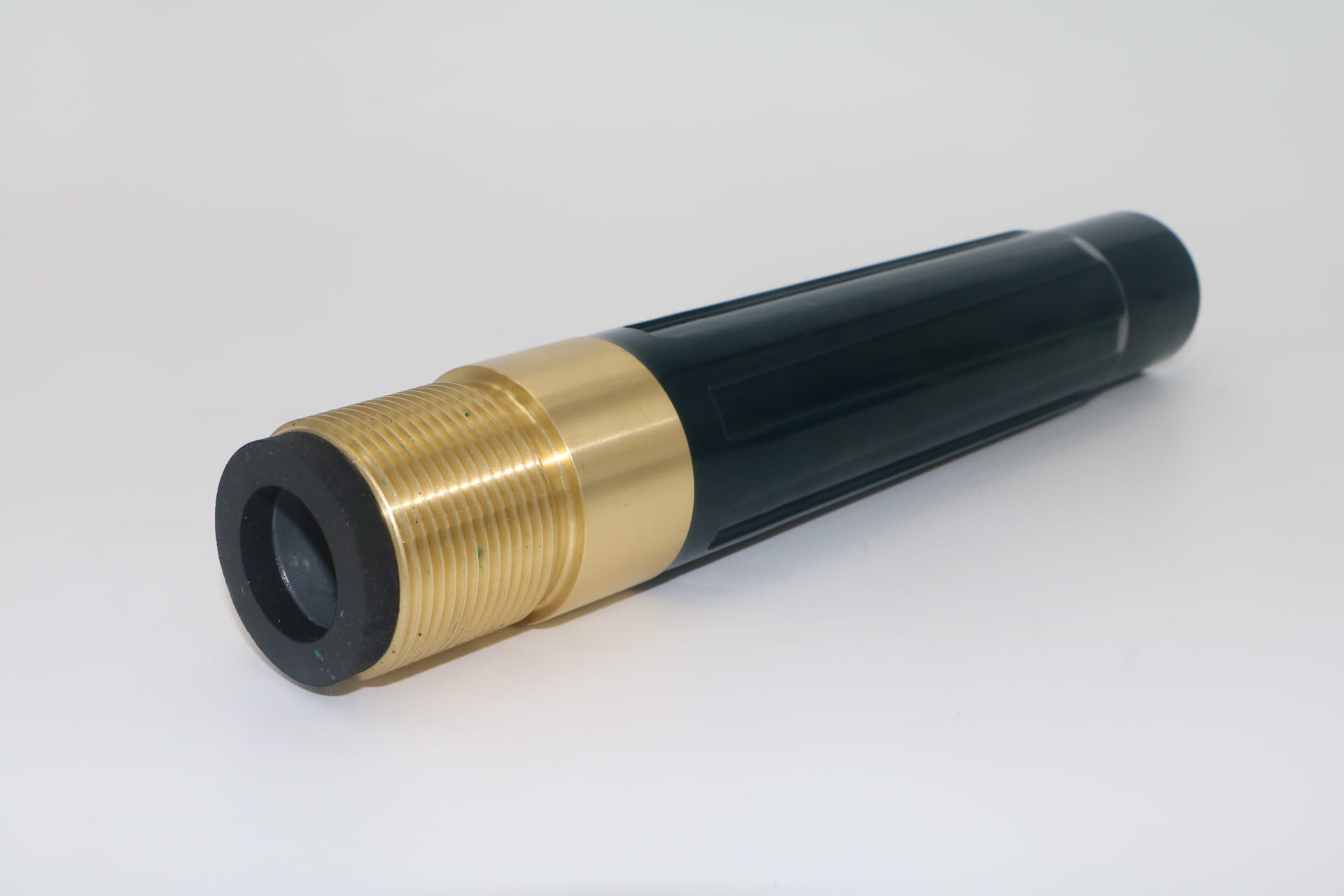

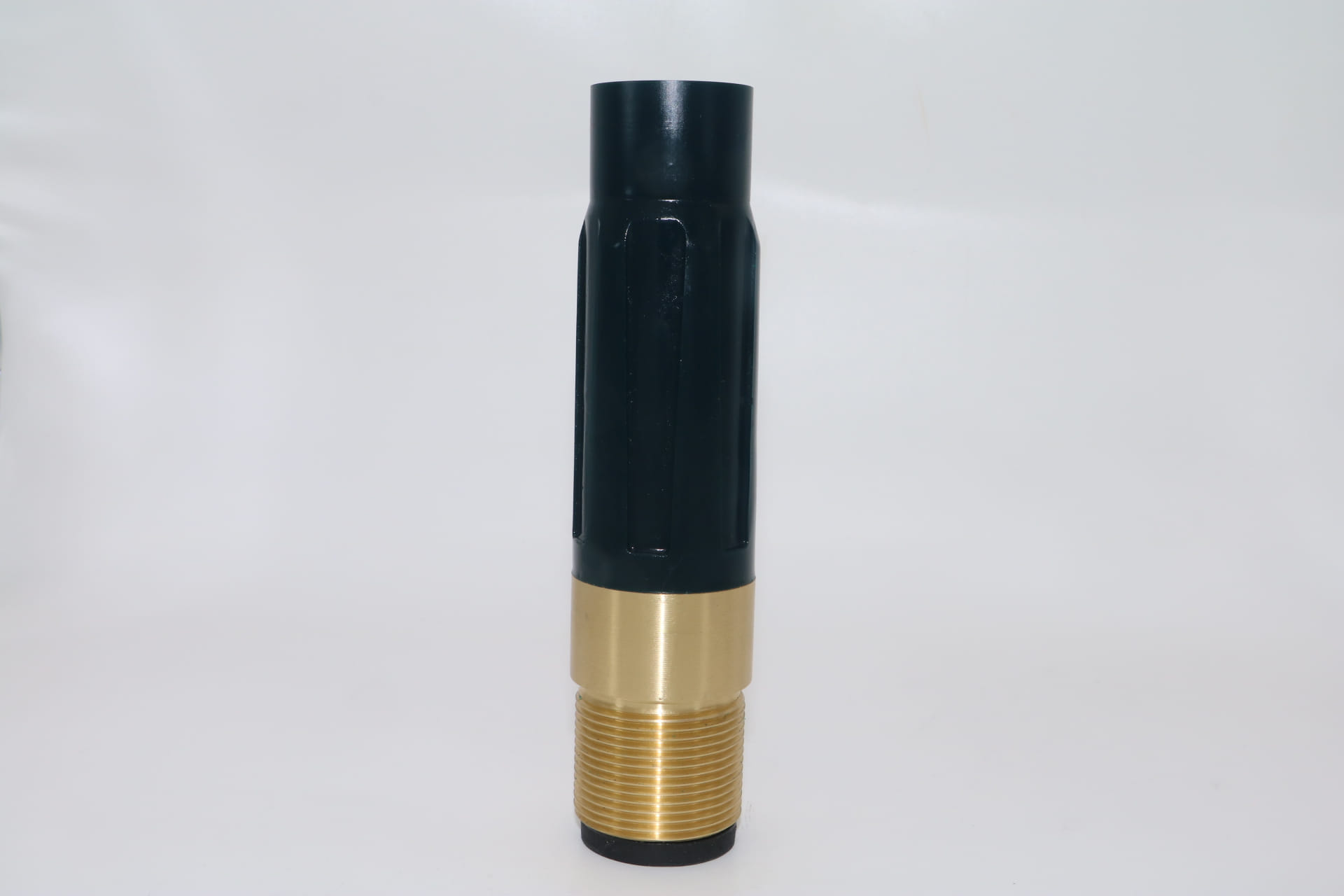

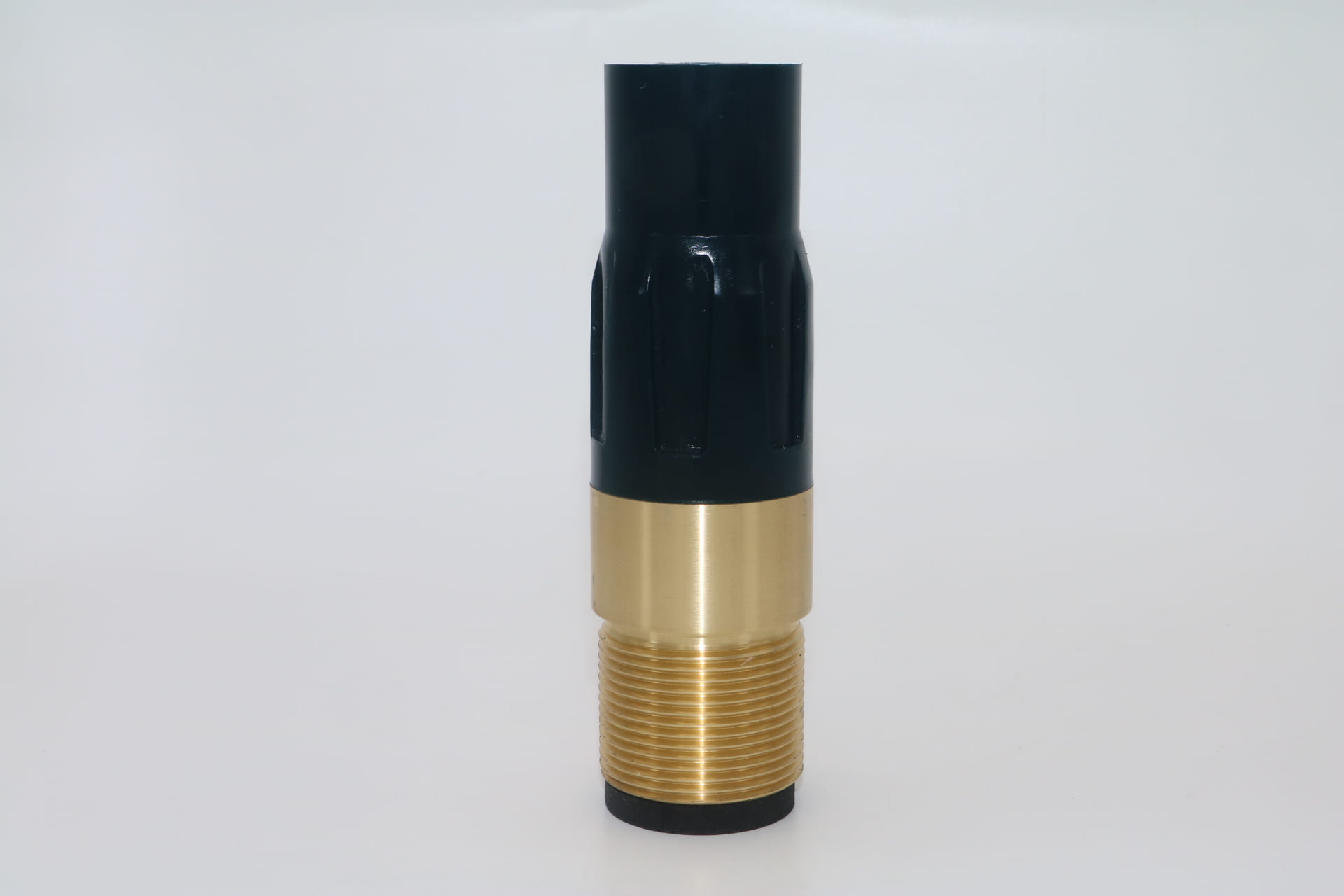

Tungsten Carbide Long Venturi Nozzle with Nylon Jacket and 1-1/4″ NPSM Brass Threads

$117.33$201.53

The tungsten carbide venturi sandblasting nozzle with nylon jacket is suitable for use in most open blast and blast room applications. It features a nylon and urethane outer jacket and  1-1/4″, 11-1/2″ N.P.S.M. brass threads.  Each nozzle comes with a washer for quick assembly.

Customer Reviews
5.0 Based on 1 Reviews
5 ★
100%
1
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
100reviewers would recommend this product Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
JM
06/19/2022
John M.
US US
I recommend this product

Description

These Tungsten Carbide Long Venturi Nozzle s have a 1″ entry in a flanged design with 1-1/4″ brass threads (Contact us to order in contractor thread) and a reinforced polyurethane jacket.   The long venturi nozzle offers a 40% increase in production over a straight bore nozzle.   Made with a protective polyurethane jacket, these nozzles are obviously built for physically demanding operations. .

OEM:

  • Kennametal TLVE-P series

OEM Tungsten Carbide Long Venturi Nozzle Equivalent:

  • (11-400) Empire 501742, Empire 40456, Clemco 01384, Clemco 23513, Clemco 04950, A-BEC 201-1172, IDS 501-742, PK Lindsay 850-003
  • (11-401) Dustless Blasting 131966/001, Empire 501752, Empire 40457, Clemco 01385, Clemco 23514, A-BEC 201-1173, IDS 501-752, P&G 427-010-07, P&G 727-040, PK Lindsay 850-001
  • (11-402) Dustless Blasting 131967/001, Empire 501762, Empire 40458, Clemco 01386, A-BEC 201-1174, IDS 501-762, P&G 427-010-05, P&G 727-050, PK Lindsay 850-002
  • (11-403) Dustless Blasting 131942/001, Empire 501772, Empire 40459, Clemco 01387, Clemco 23516, A-BEC 201-1175, IDS 501-772, P&G 427-010-06, P&G 727-060, PK Lindsay 850-004
  • (11-404) Dustless Blasting 131968/001, Empire 501782, Empire 40460, Clemco 01388, Clemco 23517, A-BEC 201-1176, IDS 501-782, P&G 427-010-07, P&G 727-070
  • (11-405) Dustless Blasting 131943/001, Empire 501792, Empire 40461, Clemco 01389, Clemco 23518, A-BEC 201-1177, IDS 501-792, P&G 427-010-08, P&G 727-080

Recommendation:

All of these nozzles have brass 1-1/4 threads and poly/urethane jacketing.  It is NOT recommended to use a brass nozzle holder with these brass threaded nozzles.  Instead, please consider purchasing a Nylon Nozzle Coupling with 1-1/4 threads or an Aluminum Nozzle Coupling with 1-1/4 threads to accommodate these nozzles.

For replacement washers, you may also like a 10 pack of 10-123 (1″ nozzle entry).

Tungsten Carbide stands up to most blasting medias without any advanced wear.  If you are blasting with silicon carbide, steel grit, or aluminum oxide, please consider a Boron Carbide nozzle instead.  Contact us to order a standard thread boron nozzle.

More Info:

Check out our nozzle blog for more information about nozzles.  You can also watch our YouTube video on the topic:
