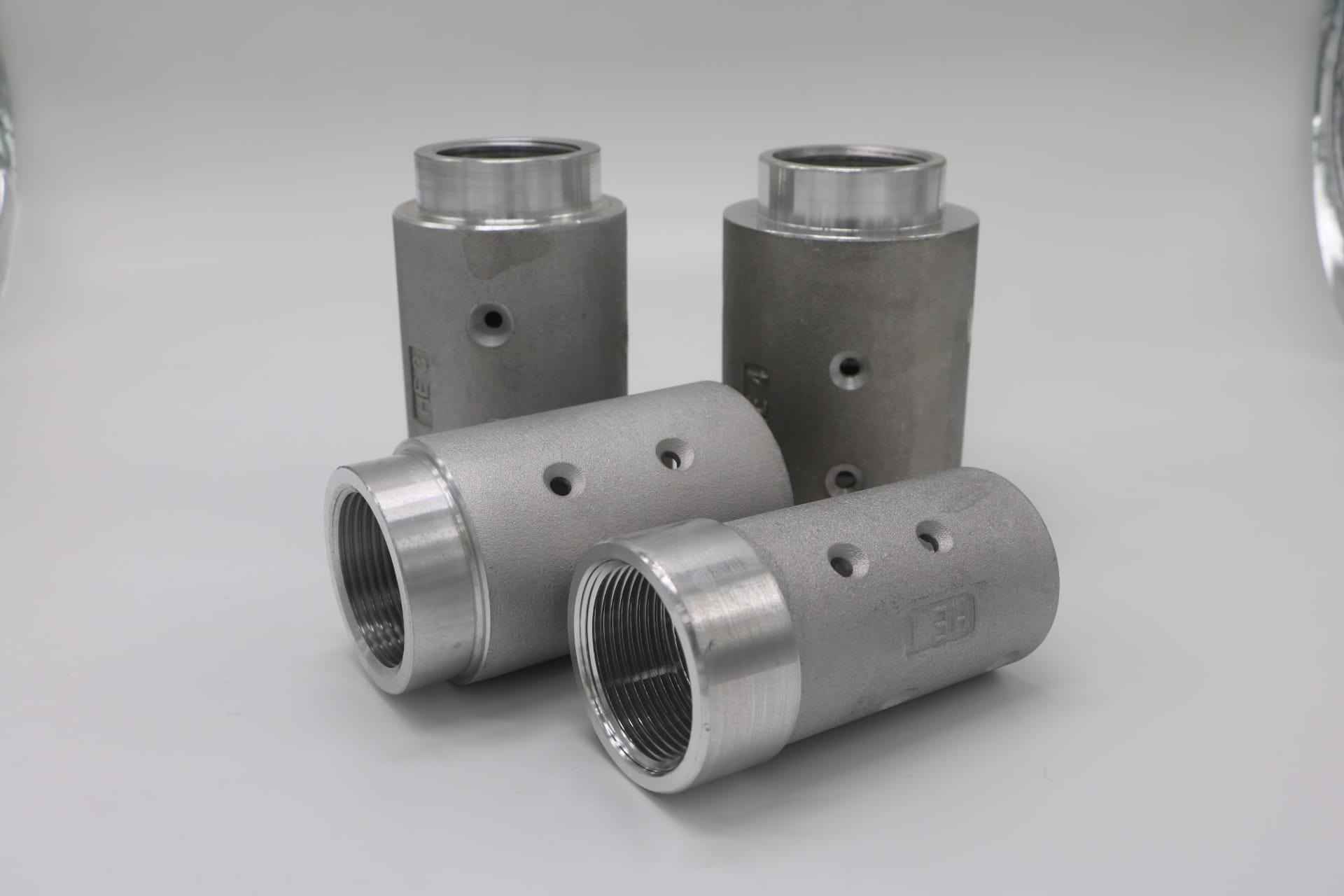

Aluminum Hose Coupling

Description

The lightweight aluminum hose coupling is made from lightweight aluminum alloy. It is extremely resilient and therefore, ideal for projects where there is the possibility of damage.  Each hose coupling comes with screws and a gasket for quick assembly.  Each coupling is also molded with raised threads to make installation easier and hold the coupling on the hose more securely.  Always make sure you put a straight cut hose end to the furthest part of the coupling to prevent wear.

Aluminum Hose Coupling Sizes with Corresponding Hose Sizes:

• Q05 = 1-1/8″ & 1-3/16″ OD hose. (15-110 2-ply)(16-210 4-ply)
• Q05A = 1-1/16″ OD hose. (16-110 2-ply)
• Q1= 1-1/2″ OD hose. (15-130 2-ply)(16-220 4-ply)
• Q2= 1-7/8″ OD hose. (15-140 2-ply)(15-230 4-ply)
• Q3= 2-5/32″ OD hose. (15-240 4-ply)
• Q4= 2-3/8″ OD hose.  (15-250 4-ply)

Blue Dog Blasting SKU #’s and OEM Equivalents:

• 14-800 (Q-05-AL)
  • Clemco 00599
  • A-BEC 180-0508
  • IDS Q-05-AL
  • Universal/Uniblast C641-050, F109-011
• 14-802 (Q-1-AL)
  • Clemco 00568
  • Schmidt 4213-405
  • Marco 10QAL1
  • IDS Q-1-AL
  • P&G 170-030-24, 601-021
  • Universal/Uniblast F109-012
  • A-BEC 180-0509
• 14-803 (Q-2-AL)
  • Clemco 00569
  • Schmidt 4213-406
  • A-BEC 180-0510
  • IDS Q-2-AL
• 14-804 (Q-3-AL)
  • Clemco 00570
  • Schmidt 4213-407
  • IDS Q-3-AL
• 14-805 (Q-4-AL)
  • Clemco 00573
  • Schmidt 4213-408
  • IDS Q-4-AL

Related Parts:

• For coupling gasket replacement see “Coupling Gasket (10 pack)” on our Replacement Parts page.
• Always use a safety whip check!
• Brass Tank Couplings
• Steel Tank Couplings (Read description for proper coupling)
• Threaded Nozzle Quick Coupling
