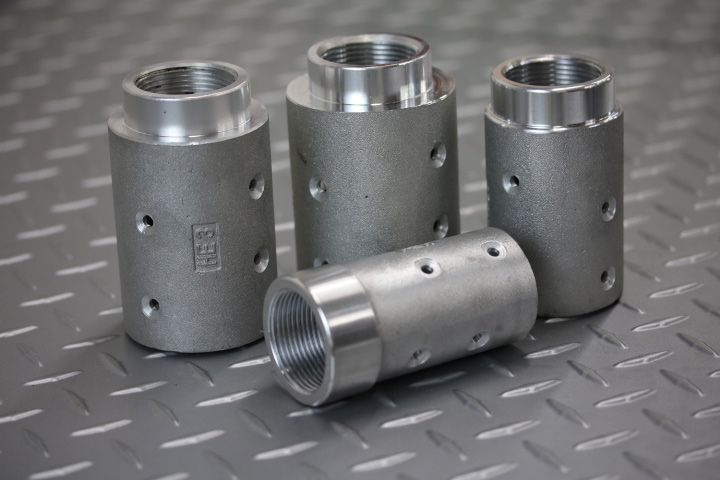

Aluminum nozzle couplings are made from lightweight aluminum alloy. They are extremely resilient and therefore, ideal for projects where there is the possibility of damage. You’ll also hear these called a blast nozzle holder. The nozzle coupling can be used for blast cabinets and sandblast pots. Each nozzle coupling comes with screws for quick assembly. Each of these couplings are for 1-1/4″ nozzles.
SKU #s with Corresponding Hose Sizes:
- 14-202 = (HE-1) 1-1/2″ OD hose (15-130 2-ply hose)
- 14-203 = (HE-2) 1-7/8″ OD hose (15-140 2-ply hose or 15-230 4-ply hose)
- 14-204 = (HE-3) 2-5/32″ OD hose (15-240 4-ply hose) can use on 2-3/16″ OD Hose but is a very tight fit.
- 15-205 = (HE-4) 2-3/8″ OD hose (15-250 4-ply hose)
OEM Equivalents:
- 14-202 (HE1)
- Clemco 00578
- Schmidt 4215-405
- Dustless Blasting 73517/001
- A-BEC 185-0501
- IDS HE-1-AL
- P&G 174-030-02, 611-026
- Universal/Uniblast F109-002
- 14-203 (HE2)
- Clemco 00579
- Schmidt 4215-406
- Dustless Blasting 68866/001
- A-BEC 185-0502
- IDS HE-2-AL
- Axxiom 4215-406
- U.S. Filter 4215-406
- 14-204 (HE3)
- Clemco 00580
- Schmidt 4215-407
- Axxiom 4215-407
- IDS HE-3-AL
- U.S. Filter 4215-407
- A-BEC 185-0503
- 15-205 (HE4)
- Clemco 00581
- Schmidt 4215-408
- Axxiom 4215-408
- IDS HE-4-AL
- U.S. Filter 4215-408
More information:
- Product specifications
- For more information about our brass hose coupling and other couplings, check out our article on couplings in our learning center.
